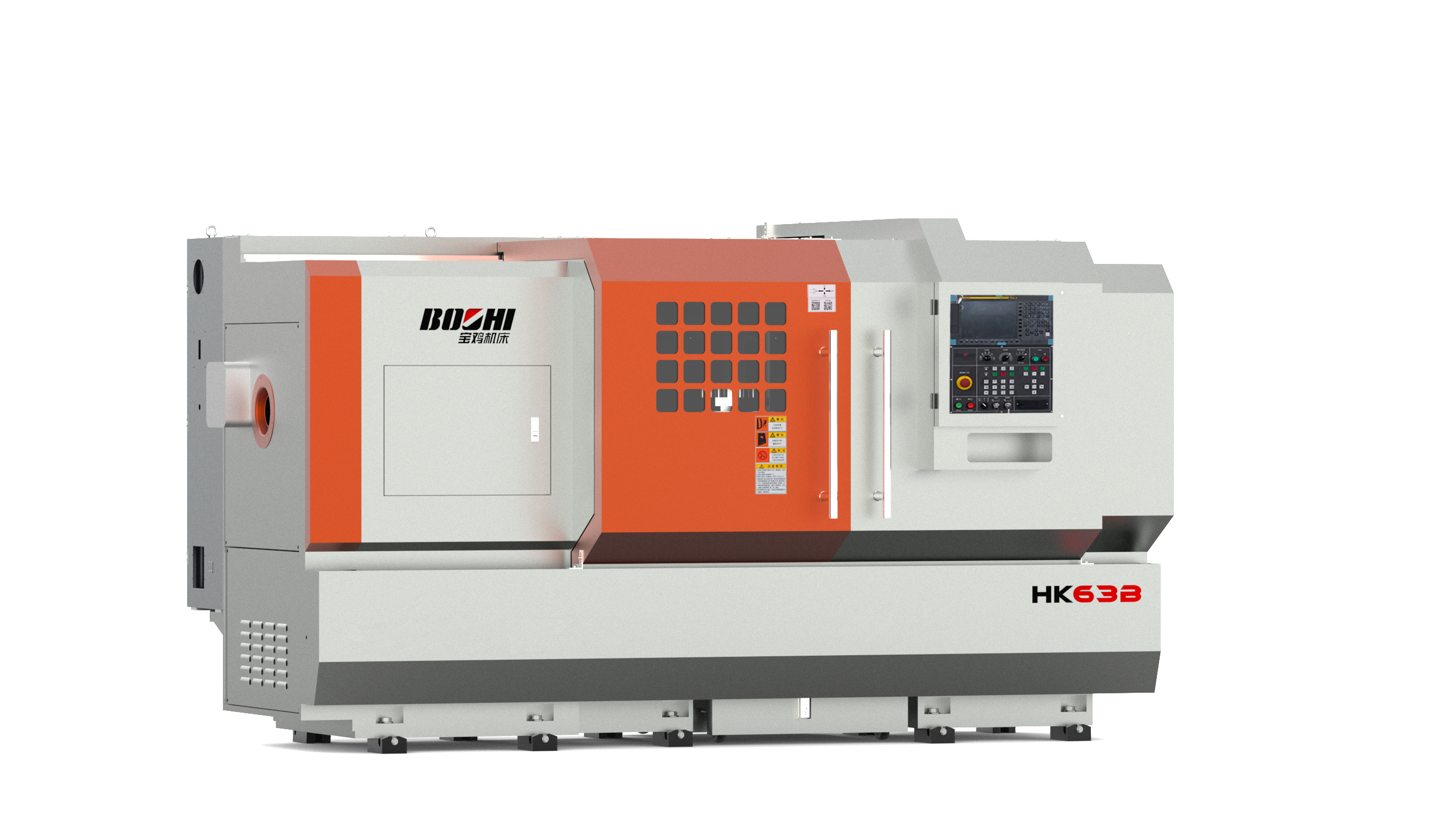

HK63B series lathe is a simple CNC lathe with three-speed transmission and in-stall infinitely variable speed regulation. It is adapted to the processing of multi-species and large-volume products for users in many industries, such as light industry, shipbuilding, machinery, automobile, motorcycle, and industry.
|
Item |
Parameters |
|||||
|
Capacity
|
Max. swing diameter over bed(mm) |
φ630 |
||||
|
Max. swing diameter over slide (mm) |
φ360 |
|||||
|
Max. turning diameter (mm) (four stations/six stations) |
φ630/φ500 |
|||||
|
Distance between two tips (mm) |
1000 |
1500 |
2000 |
3000 |
||
|
spindle
|
Spindle hole(mm) |
φ105 |
||||
|
Spindle nose |
A2-11 |
|||||
|
Chuck diameter(mm) |
φ315 |
|||||
|
Spindle bearing inner diameter (mm) |
φ160 /φ140 /φ130 |
|||||
|
Spindle speed(r/min) |
20-210 (low speed range) 37-373 (medium speed range) 112-1120 (high gear) |
|||||
|
Max.spindle torque(Nm) |
1265 |
|||||
|
Apron
|
Width of bed guideway(mm) |
560 |
||||
|
X/Z motor and power (kW) |
2.5/4.5 |
2.5/6 |
||||
|
Fast feed speed in X/Z direction (m/min) |
6/7 |
|||||
|
X/Z lead screw diameter and pitch (mm) |
φ40×5/φ50×8 |
φ40×5/φ63×8 |
||||
|
Travel in X/Z direction (mm) |
370/760 |
370/1310 |
370/1810 |
370/2810 |
||
|
turret
|
Tool size (turning/boring mm) |
32×32/Φ32 |
||||
|
Tool holder capacity |
4/6 |
|||||
|
Table width(mm) |
240×240 |
|||||
|
Tailstock
|
Diameter of quill(mm) |
φ100 |
||||
|
Taper of tailstock sleeve （ MT No. ） |
5 |
|||||
|
Max.travel of tailstock sleeve (mm) |
250 |
|||||
|
Others
|
Power supply (kVA) |
25 |
||||
|
Main motor (kW) |
11 kW servo motor |
|||||
|
Machine tool dimensions (length x width x height mm) |
3250×2000×1850 |
3650×2000×1850 |
4150×2000×1850 |
5150×2000×1850 |
||
|
Net weight (kg) |
4600 |
5100 |
5600 |
6100 |
||
|
Machine tool standard load-bearing capacity 1200Kg, maximum load-bearing capacity 1500Kg |
||||||
