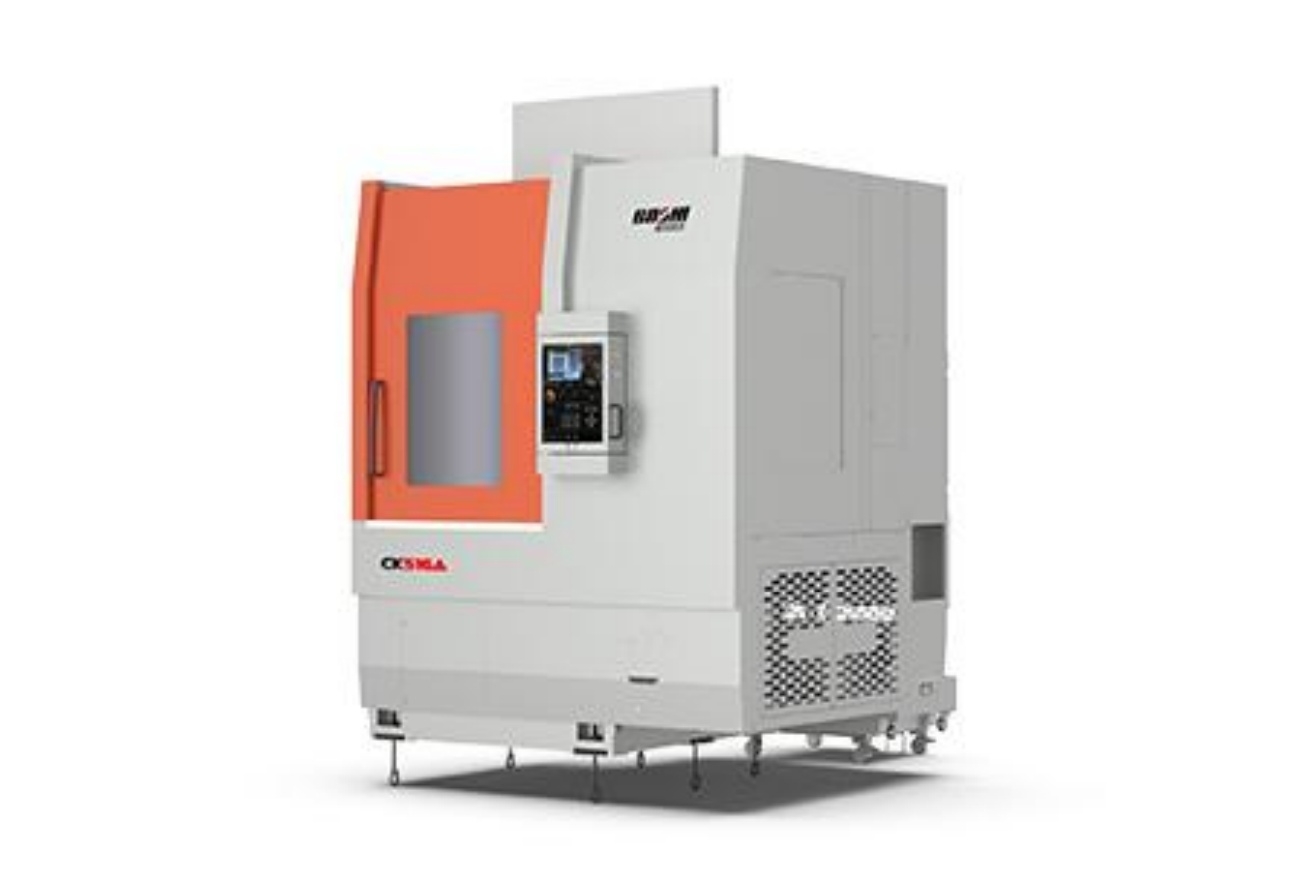

CK516A is a CNC vertical lathe adopt the linear rolling guide rails, equipped with FANUC 0i-TF (5) CNC system and vertical turret tool holder, suitable for processing large and medium-sized disc and cover parts. Vertical structure makes it easy to clamp workpieces and occupies a small area
|
Item |
Capacity |
|
Max. swing diameter(mm) |
Φ850 |
|
Max. cutting diameter through Apron (mm) |
Φ630 |
|
Max. cutting diameter (mm) |
Φ750 |
|
Max.cutting height (mm) |
600 |
|
Chuck size: （mm） |
Φ 450 (Soild) |
|
Spindle nose: （GB/T5900.1） |
A2-11 |
|
Spindle speed : r/min |
80-1200 |
|
Spindle motor power: （kW） |
30/37 |
|
Spindle max torque Nm |
1058 |
|
Rapid feed speed: m/min |
X-axis: 14 Z-axis: 14 |
|
X/Z-axis travel: （mm） |
X-axis: 640 Z-axis: 650 |
|
Cutting feed speed: mm/min |
0-6000 |
|
Minimum resolution: （mm） |
0.001 |
|
Tool capacity |
6 |
|
Tools clamping size turning/boring: （mm） |
32X32/Φ50 |
|
Power supply: （kVA） |
55 |
|
volume L x W x H: (mm) Excluding chip conveyor |
2500×2600×3400 |
|
weight: （kg） |
10000 |
