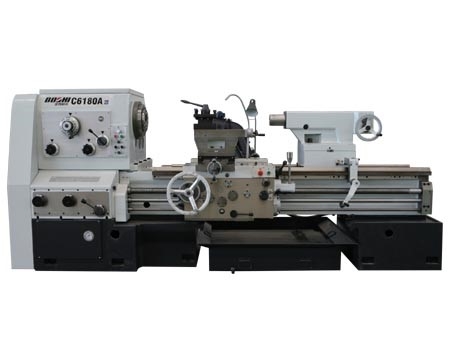

- C6180A/C6280A
-
5 axis compound machining center
-
5 axis machining center
-
Turning center
-
Horizontal CNC lathe
-
Vertical CNC lathe
-
Special propose CNC lathe
-
Economic CNC lathe
-
Conventinal lathe
-
Horizontal machining center
-
Vertical machining center
-
VMC Standard series
-
BV series
-
Overloaded
-
High-precision type
-
-
Gantry machining center
-
Automatic and others
This lathe is able to perform internal/external cylindrical turning, taper turning and other sort of turnings, facing, threading such as Metric, Inch, Module and D.P threads; drilling, reaming, tapping and grooving, etc.
|
Description |
Unit |
C6180A |
|
|
|
Capacity |
Max swing over bed |
mm |
Φ830 |
|
|
Max swing over slide |
mm |
Φ540 |
|
|
|
Max. distance between centers |
mm |
1500/2000/3000/4000 |
|
|
|
Max. turning length |
mm |
1400/1900/2900/3900 |
|
|
|
Bed way width |
mm |
560 |
|
|
|
Spindle |
Spindle thru-hole |
mm |
φ105 |
|
|
Spindle hole taper |
|
1:20(metric taper) |
|
|
|
Spindle nose |
|
A1-11 |
|
|
|
Spindle speed |
r/min |
14 steps 12.5-1120 |
|
|
|
Feed and thread |
Max travel of upper tool rest |
mm |
200 |
|
|
Max travel of lower tool rest |
mm |
515 |
|
|
|
Tool section |
mm |
32×32 |
|
|
|
Range of cross feeds |
mm/r |
64 sorts 0.031-7.0 |
|
|
|
Range of long feeds |
mm/r |
64 sorts 0.062-14.0 |
|
|
|
Metric thread |
mm |
38 sorts 0.5-56 |
|
|
|
Inch thread |
t.p.i |
43 sorts 56-0.5 |
|
|
|
Module thread |
πmm |
21 sorts 0.25-7 |
|
|
|
D.P. thread |
DP |
27 sorts 56-4 |
|
|
|
Tailstock |
Tailstock quill diameter |
mm |
φ100 |
|
|
Max.travel of quill |
mm |
250 |
|
|
|
Taper of tailstock quill (Morse) |
|
Morse taper No.5 |
|
|
|
Motor |
Main motor power |
kW |
11 |
|
|
Coolant pump |
kW |
0.18 |
|
|
|
Others |
Machine length |
mm |
3500/4000/5000/6000 |
|
|
Machine width |
mm |
1370 |
|
|
|
Machine height |
mm |
1470 |
|
|
|
Total weight |
kg |
4500/4800/5300/6100 |
||
